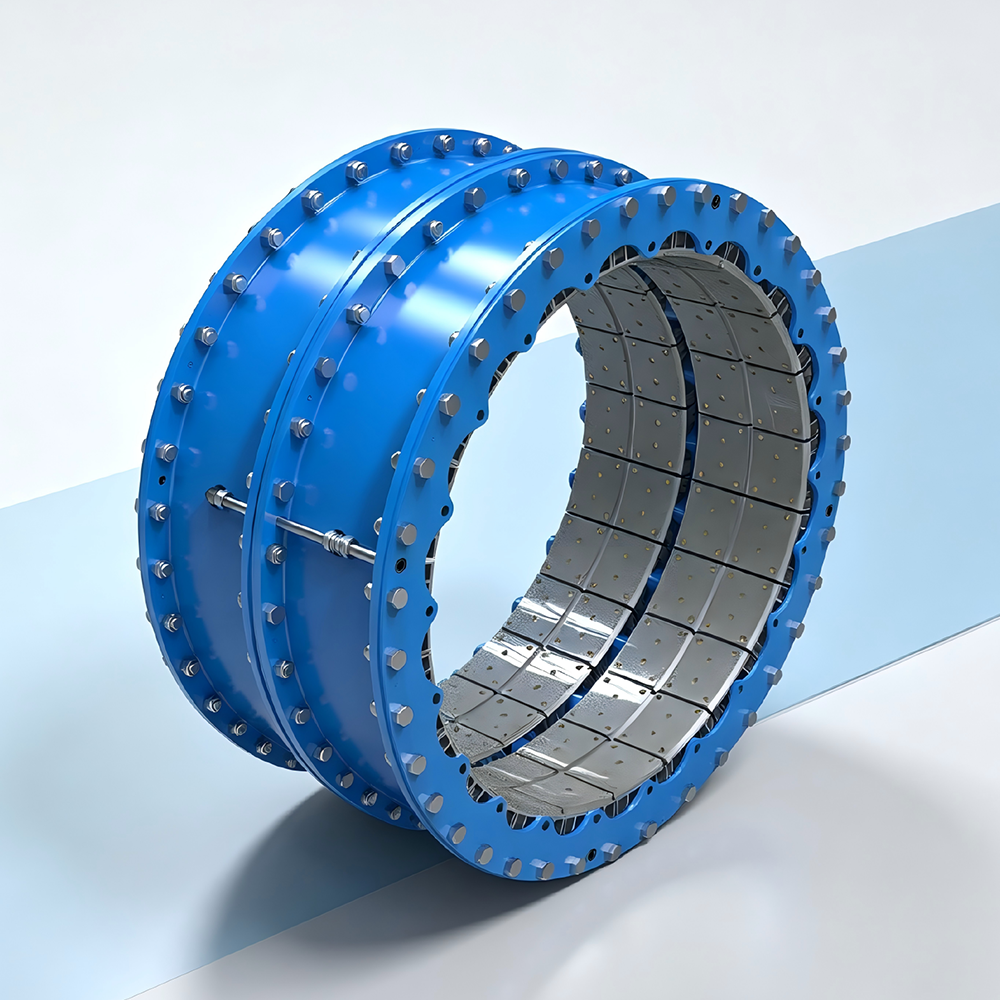

VC Clutches and Brakes
The VC element assembly is specifically designed and manufactured for severe clutch or brake applications on heavy equipment where high starting loads or sustained slippage would normally lower clutch or brake efficiency and reduce operating life.The VC clutch can be dismantled on the shaft to gain access to its component parts. All parts are available as replacement parts.
- Brand:Rubflex
- Size:11.5VC500-76VC2000
- Replacement:Airflex,Fawick,Oil States,Dellner
| 11.5VC500 | 14VC500 | 16VC600 | 20VC600 |
| 24VC650 | 28VC650 | 33VC650 | 35VC650 |
| 37VC650 | 42VC650 | 12VC1000 | 14VC1000 |
| 16VC1000 | 20VC1000 | 24VC1000 | 28VC1000 |
| 32VC1000 | 38VC1200 | 42VC1200 | 46VC1200 |
| 52VC1200 | 51VC1600 | 60VC1600 | 66VC1600 |
| 76VC1600 | 76VC2000 |
- Ventilated open construction dissipates heat rapidly
- Shock-free engagement when used as a clutch
- Highly serviceable with all parts available for replacements
- Torque capacities available up to 9,300,000lb•in (1,050,759 N•m)
- Available in 24 sizes in narrow or wide and single or dual configurations
